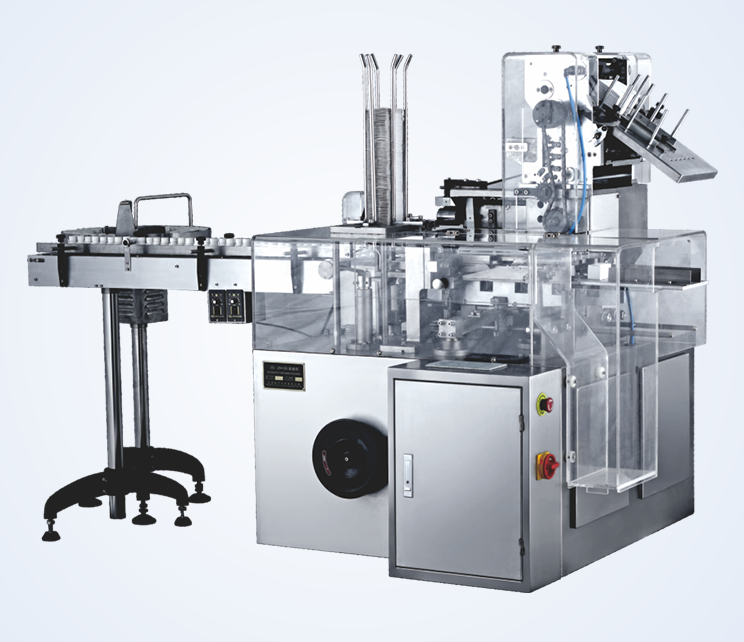

自动装盒机

主要技术参数MAIN TECHNICAL SPECIFICATIONS

型号Model

ZH100

生产能力Packing speed

60-100盒/分钟cartons/min

纸盒尺寸范围(长x宽x高)

Size of carton box(L x Wx H)

(40~155)x(20~95)x (10~56) mm

纸盒平铺总长

Total length of carton board

<290mm

纸盒质量Quality of Carton box

250~350 g/m²

说明书最大尺寸(长x宽)

Max Size of leaflet paper(L x W)

210 x 290 mm

说明书最小尺寸(长x宽)

Min size of leaflet paper(L x W)

70x 90 mm

说明书质量Quality of leaflet

60~70 g/m²

压缩空气工作压力

Pressure of compressed air

0.5~0.7 Mpa

耗气量air consumption

120~ 160L /min

工作噪音Working noise

≤80dB

主电机功率Machine power

0.75KW

电源Power supply

380V 50Hz 3Ph
