主要特点MAIN FEATURES
◆采用西门子PLC加昆仑动态7寸真彩触摸屏，人机界面功能，操作简单快捷。
◆拉袋采用DSP数字驱动器，高细分制袋精准，误差小于1毫米。
◆采用封切一体，一次成形，外形美观漂亮。
◆智能型光电色标定位控制系统，能够自动排除由于非正常色标图案及印刷不良的包装材料造成干扰信号的影响，运行稳定可靠。
◆采用最新摇盘式容杯调整装置，可在机器运行过程中随时调整包装容量，减少物料损失，提高工作效率。
◆Siemens PLC plus Kunlun dynamic 7-inch true-color touch screen, man-machine interface function, easy and fast operation.
◆DSP digital drive is used for the pull bag, and the bag making is precise with high subdivision, and the error is less than 1mm.
◆Using sealing and cutting as a whole, one-time forming, beautiful appearance.
◆The intelligent photoelectric color mark positioning control system can automatically eliminate the influence of interference signals caused by abnormal color mark patterns and poorly printed packaging materials, and the operation is stable and reliable.
◆Using the latest shaker-type cup adjustment device, the packaging capacity can be adjusted at any time during the operation of the machine, reducing material loss and improving work efficiency.
主要技术参数MAIN TECHNICAL SPECIFICATIONS | |

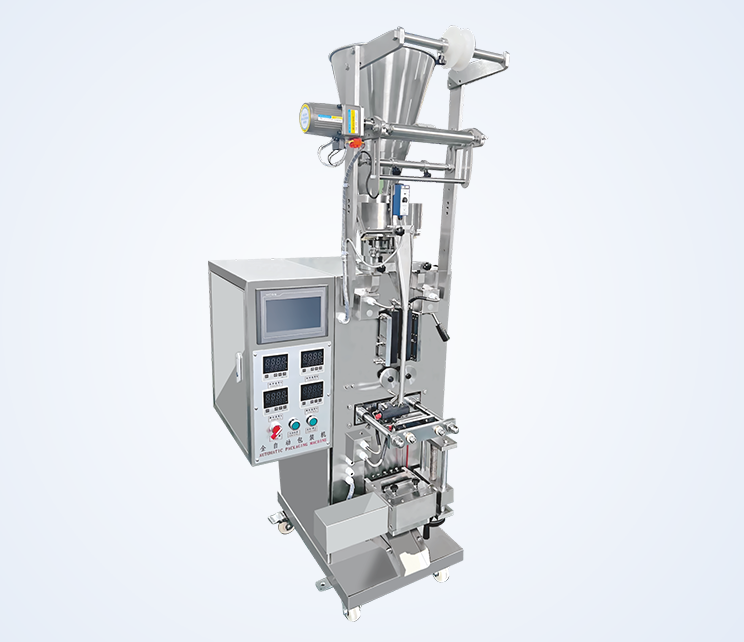

型号Model | DXDK60-IIXZ |
计量范围(毫升) / Measurement range(ML) | 1.8-50或20-100 |
功率(千瓦) / Power(KW) | 1.72 |
外形尺寸(毫米) / shape size(mm) | 7500 x 700 x 1640 |
电源电压/ Power supply voltage | 三相四线制Three- phase four- -wire 380V /50Hz or 220V |
包装材质/ Packging materials | 多种复合膜包装材料1 A variety of composite film packaging materials |
工作环境温度/ Working environment temperature | 0~40°C |
工作环境湿度/ Working enviroment humidity | 20 ~ 90%RH (无结露No Condensation) |
工作环境/ Working environment | 无腐蚀性及易燃易爆气体、粉尘No corrosive and flammable and explosive gas, dust |
包装速度(袋/分) 1 Packing speed (bag/minute) | 20~50 |
制袋尺寸(毫米) 1 Bag size(mm) | 长40~ 150宽20~ 105 |
重量(千克) / Weight(KG) | 220 |
包装材料直径(毫米) / Packinag material diameter | 300(毫米)≤300(mm) |
