主要用途

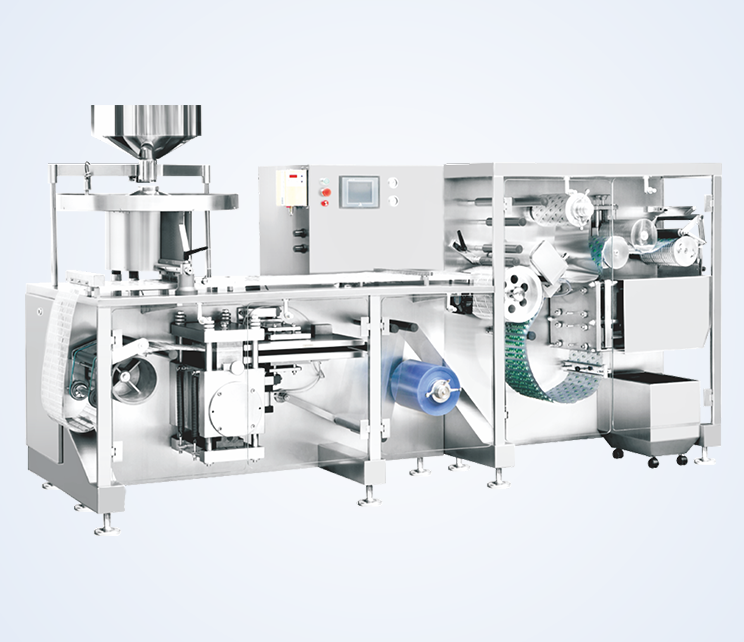

本产品是我公司创新设计的新一代滚板式高精度泡罩包装设备,适用于制药、食品、医疗器械、电子企业的胶囊、片剂、奶片、糖果及电子元器件等产品的铝塑、纸塑密封包装。
MAIN PURPOSE
It is the latest roller and plate type blister packing machine at high precise, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronic area. It is suitable for packing capsules, tablets, softgel, candy, electronical element and similar material with blister packing in AL /PVC and Paper/PVC.
技术参数TECHNICAL PARAMETERS
型号Model | DPH-220 | DPH-260 |
药用PVC Pharmacy PVC | (0.2-0.4)x 220mm | (0.2-0.4) x 260mm |
铝箔Aluminum foil PTP | (0.02-0.05) x 220mm | (0.02-0.05) X 260mm |
包材卷料尺寸PVC & PTP | 卷料外径Diameter of outer reel <中400mm | |
卷料内孔径Diameter of reel core:中70 ~ 80(mm) | ||
冲裁频率Packing speed | 40- 120次/分钟Times/min | 40- 120次/分 钟Times/min |
包装效率Packing efficiency | 胶囊: 11-7万粒小时Capsule: 110,000- 170,000 pcs/h | 胶囊: 16 - 26万粒小时Capsule: 160,000 - 260,000 pcs/h |
片剂: 15- 30万粒小时Tablet:150,000- -300,000 pcs/h | 片剂: 22 - 45万粒小时Tablet: 220,000 - 450,000 pcs/h | |
压缩空气Compressed air(pressure) | 0.6-0.8MPa | 0.6-0.8MPa |
耗气量Air consumption(m/min) | ≥0.4
| ≥0.4 |
外形尺寸Overall dimensions(L x W x H) | 3140 x 940 x 1600mm | 3140 x 940 x 1600mm |
净重Weight | 2500Kg | 2800Kg |
装机功率Installed power | 12.5Kw 380V 50Hz | 12.5Kw 380V 50Hz |
