主要用途

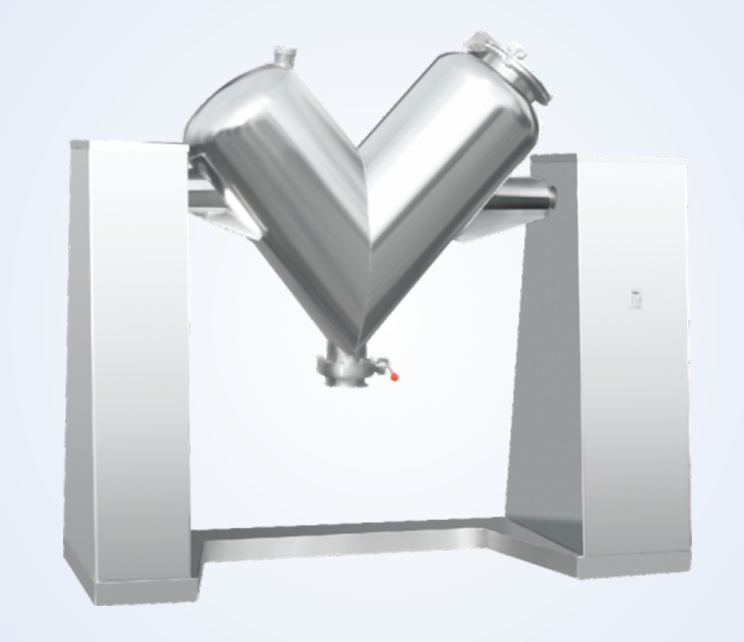

本机具有简体无死角、不积料、速度快、混合时间短的特点。简体采用不锈钢制成。内外壁抛光，外形美观。进料可手工加工或真空吸料。出料采用转阀和快速旋盖。本机适用于医药及其它工业粉状或颗粒物料的混合之用。它通过机械传动，使两个不等高的V型圆柱简体内的物料做往复翻动，达到均勻混合目的。
MAIN PURPOSE
This machine has the characteristics of simple no dead angle, no material accumulation, fast speed and short mixing time. Simplified in stainless steel. The inner and outer walls are polished and the appearance is beautiful. The feed can be processed manually or vacuumed. The discharge is made of a rotary valve and a quick screw cap. This machine is suitable for the mixing of pharmaceutical and other industrial powder or granular materials. Through mechanical transmission, the materials in the V- shaped cylinders of two unequal heights are reciprocated to achieve uniform mixing.
技术参数TECHNICAL PARAMETERS | |||||||
型号Model | V-0.1 | V-0.2 | V-0.3 | V-0.5 | V-1.0 | V-1.5 | V-2.0 |
总容积Total capacity(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 |
最大装载量Max. loading capacity(L) | 40 | 80 | 120 | 200 | 400 | 600 | 800 |
电机功率Motor power(kw) | 1.1 | 1.5 | 1.5 | 1.5 | 3 | 4 | 5.5 |
净重Total weight(kg) | 180 | 250 | 350 | 550 | 1000 | 1100 | 1500 |
外形尺寸Overall Size(mm) | 1900x600x1190 | 2270x700x1440 | 2320x800x1470 | 2520x900x1510 | 3040x1000x1765 | 3300x1000x1750 | 3700x1200x2000 |
