主要用途
本机用以混合粉状或糊状的物料，使不同质物料混合均匀。其特点是卧式槽形单桨混合，搅拌浆为活洛式，便于清洗，与物料接触全用不锈钢制成，有良好的耐腐蚀性。混合可自动翻转倒料，混合时间也可自动控制。
MAIN PURPOSE

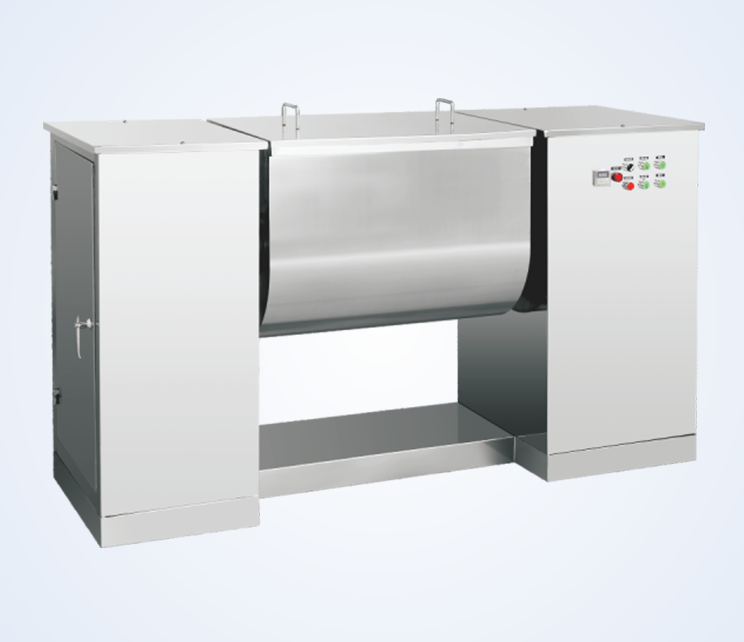

CH series trough type mixing machines are designed for thoroughly mixing powders or pastes, it is a horizontal trough type mixer with single stirring arm. The stirring arm is removable so that is easy to clean. The parts' surfaces which may touch the mixing materials are made of stainless steel, so they are good corrosion-resistant. The mixing trough can automatically reverse for discharge and the mixing time can be automatically controlled.
技术参数TECHNICAL PARAMETERS | ||||||
工作容积Trough Capacity (L) | 50 | 100 | 150 | 200 | 300 | 500 |
电机功率Motor power(kw) | 1.5 | 2.2 | 3 | 3 | 5.5 | 7.5 |
搅拌桨转速Mixing arm speed(rpm) | 24 | 24 | 23 | 23 | 21 | 18 |
混合槽翻转角度Discharging angle("C) | 105 | 105 | 105 | 105 | 105 | 105 |
净重Weightkg) | 100 | 350 | 500 | 650 | 800 | 1200 |
外形尺寸Overall size(mm) | 1200x500x560 | 1300x600x1000 | 1500x600x1200 | 1600x600x1200 | 1800x700x1250 | 2050x800x1300 |
