主要用途

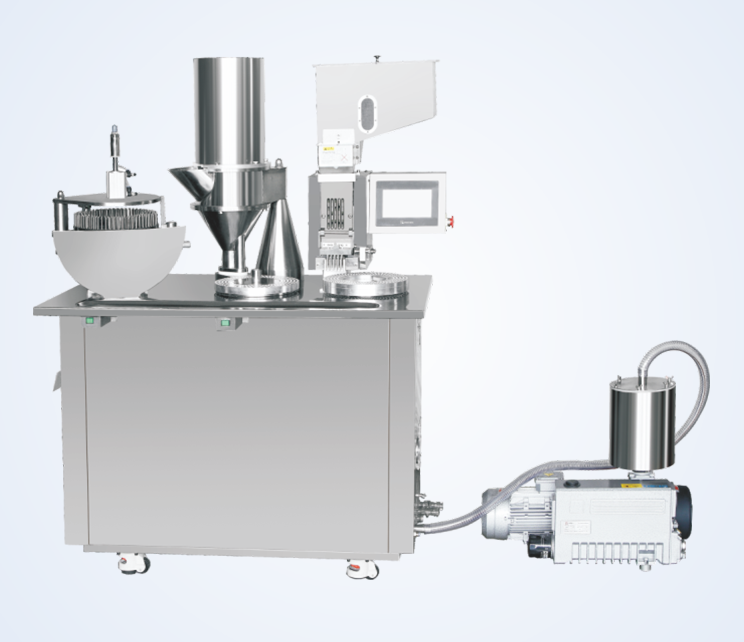

本机适用于充填各种尺寸的胶囊,采用电气联合控制,配备电子自动技术装置,能分别自动完成胶囊的就位、分离、充填、锁紧等动作,减轻劳动强度,提高生产效率,符合制药卫生要求。本机动作灵敏,充填剂量准确,结构新颖、造型美观、操作方便,是适合小型生产的理想设备。
MAIN PURPOSE
The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.
技术参数TECHNICAL PARAMETERS | |
最高产量Max output | 12000pcs/hour |
胶囊尺寸Capsule size | No.0-5 |
功率Power | 2.2KW 380V/50Hz |
外形尺寸Dimension | 1350x 700x 1600 mm |
净重Weight | 400kg |
辅机Assistant | 空压机1台Air Compressor 1 set 真空泵1台Vacuum pump 1set |
