工作原理
▲外围罩壳为全封闭式，外围及内部台面采用不锈钢304材料，能保持表面光泽及防止交叉污染，符合GMP。
▲压制室采用有机玻璃全封闭，通过透明防护罩可以清楚地看到机械运转的情况，且能全部打开易于清洗和保养。
▲实现机电一体化，采用变频调速。
▲机械装吸尘装置，能将压制室内飞扬的粉尘吸收干净。
WORKING PRINCIPLE
▲The peripheral housing is fully closed. The peripherals and internal table surface are made of 304 stainless steel to maintain luster on the surface and avoid cross contamination, conforming to GMP requirements.
▲The tablet pressing chamber is fully closed by organic glass. The transparent protective covers enable the machine operation status to be clearly observed. In addition, they can be opened to make cleaning and maintenance easy.
▲With mechanical and electrical integration, variable frequency speed adjustment is adopted.
▲The machine is provided with a dust collector to thoroughly collect the dust in the tablet pressing chamber.
主要用途

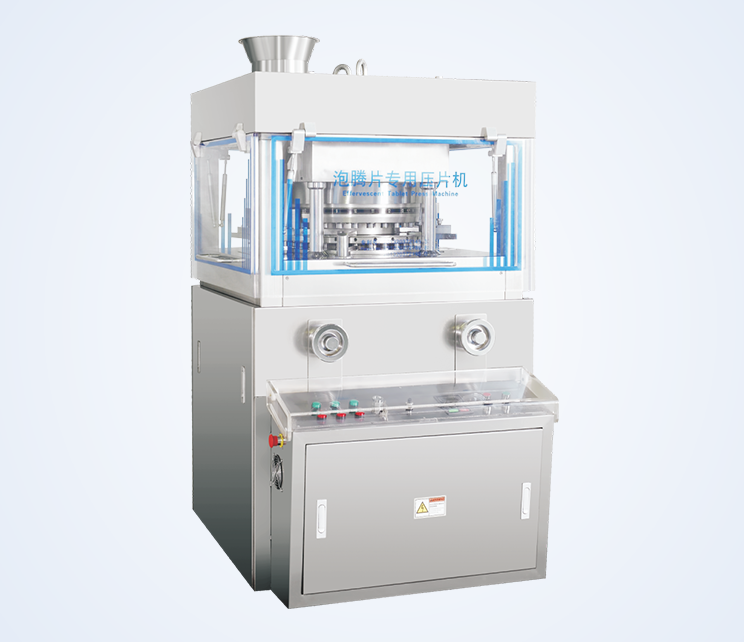

本机是我公司最新开发的一款专业压制泡腾片的旋转压片机，用于将颗粒状原料压制成片剂。目前国内唯一的专业压制泡腾片的设备，主要应用于泡腾片、芳香片、洗涤块、坩埚等难脱模的片剂生产。
MAIN PURPOSE
The machine is a latest rotary tablet press developed by our company, used to press granular raw materials into tablets. It is the only professional effervescent tablet press in China. It is mainly used for tablet production of effervescent tablets, aromatic tablets, washing blocks and other tablets with difficult mold release.
技术参数TECHNICAL PARAMETERS | |
型号Model | ZP-25 |
冲模数Punch quantity(Sets) | 25 |
最大压片压力Max. tablet pressure(kn) | 80 |
最大压片直径Max. tablet diameter(mm) | 25 |
最大充填深度Max. filling depth(mm) | 10-25 |
最大片剂厚度Max. tablet thickness(mm) | 6-12 |
转盘转速(转/分) Turret rotation speed | 10-20 |
生产能力Production capacity(Pc/h) | 30000 |
电机功率Motor power(kw) | 3-5.5 |
外形尺寸Overall size(mm) | 1230x950x1800 |
主机重量Machine weight(kg) | 2000 |
