主要用途
该机是利用物料中的结晶水，直接将粉料制成颗粒的新设备。该机结构新颖合
理，性能稳定可靠，清洗维修方便。该机制成的颗粒可以压片剂，做冲剂，灌
胶囊等。该机主要应用于制药、食品、化工和其它行业，特别适用于湿法制粒
无法解决的物料进行造粒。
MAIN PURPOSE

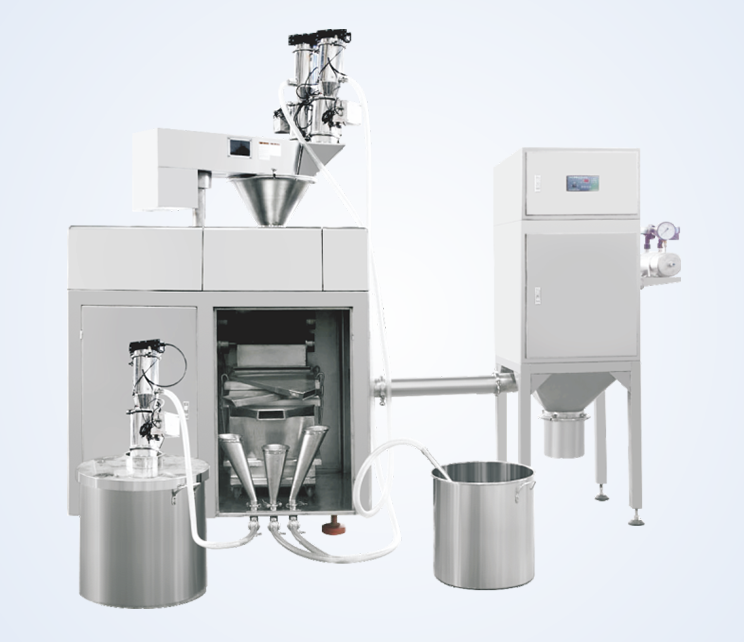

This machine is a new equipment that directly uses the crystal water in the material to make
the powder into particles. The structure of the machine is novel and reasonable, the performance is stable and reliable, and the cleaning and maintenance are convenient. The granules made by the machine can be used to compress tablets, make granules, and fill capsules. The machine is mainly used in the pharmaceutical, food, chemical and other industries, especially for granulation of materials that cannot be solved by wet granulation.
技术参数TECHNICAL PARAMETERS | |||
型号Model | GK-70 | GK-120 | GK-250 |
生产能力Production capacity(kg/h) | 20-60 | 60-200 | 80-300 |
制粒粒度Granule size(mm) | 0.4-6 | 0.4-6 | 0.4-6 |
工作压力Working pressure(KN) | 198 | 294 | 310 |
电机功率Motor power(kw) | 10.8 | 12.8 | 23.5 |
外形尺寸Overall dimensions (mm) | 1380x850x2200 | 1850x1100x2600 | 2080x1240x2920 |
重量Weight(kg) | 1600 | 2000 | 3000 |
