主要特点
▲整机运转采用自动分度，间歇回转，同时完成播囊、去除废囊、锁囊、清洁模具作业，达到定位精度高、噪音小。
▲电脑控制，无级变频调速，数码显示达到操作方便，醒目直观。
▲对胶囊适应性好，上机率高，使用充填,中西药物，采用多孔塞式工作原理，计量准确，装量差异优于国家药典规定标准。
▲设有对人、机的安全保护装置，具有缺料自动停机装置，达到机器运行平稳、安全可靠，是生产硬胶囊制药厂的理想设备。
MAIN FEATURE
▲This machine runs as per automotive . separating revert interval, feeding, removing useless capsule, clipping and coming capsule, cleaning mould are completed at same time, which has reach high precision and low noise levels.
▲With the automatic controlled, the speed can be adjusted by frequency conversion. Digit display, the machine is easy to operate.
▲This machine is with good suitability, high frequency for filling Chinese and western medicines. Which adopted more hole type working principle, exact calculating, the difference of packing are more advanced than its standard of governments pharmacopoeia.
▲It is equipped with safety protection unit for people and machine. It can be automatically
stopped when the material used up. It is a good equipment for a pharmaceutical manufacturer.
主要用途
NJP型系列全自动胶囊充填机，是我厂吸收国内外同类产品的优点结合国内实际情况，自行研究的最先进充填机，完全符合GMP规范。
MAIN PURPOSE

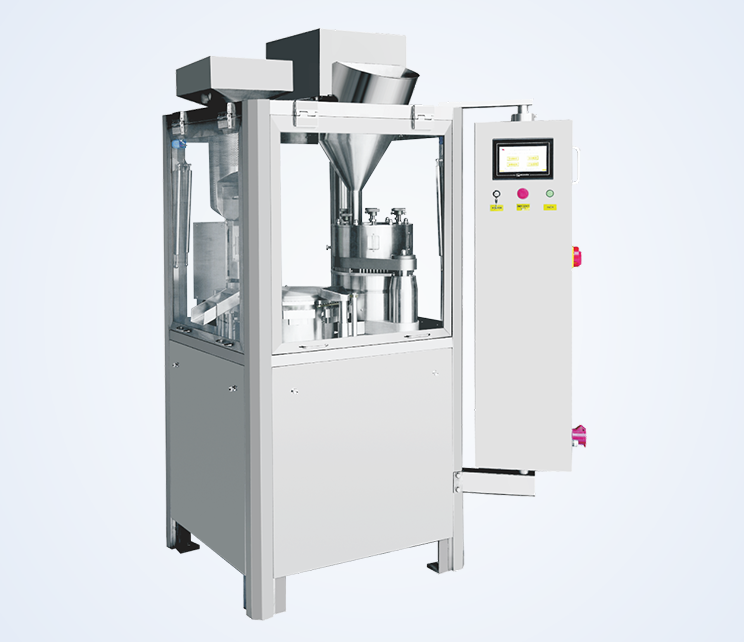

NJP series automatic capsule filling machines are the advanced filling machines which are developed after absorbed many advantages of same kinds of machines inside and outside
our country, which conform to GMP standard.
技术参数TECHNICAL PARAMETERS | |||||||
型号Model | NJP-200 | NJP-400 | NJP-600 | NJP-800 | NJP-1200 | NJP-2000 | NJP-3500 |
灌装类型Filling dosage form | 粉末、颗粒、微丸及药片Powder&granule, pellet or tablet | ||||||
产量Output(pcs/min) | 200 | 400 | 600 | 800 | 1200 | 2000 | 3500 |
胶囊尺寸Capsule size | No.00-No.5 | ||||||
上机率Capsule qualified rate | > 99% | > 99% | > 99% | > 99% | > 99% | > 99% | > 99% |
灌装精度Dosing precision | ＜±4% | ||||||
电源Power supply | 380V/50HZ | ||||||
功率Power(kw) | 3 | 3 | 3 | 4 | 5 | 8 | 10.5 |
噪音Noise | 低于Lower 80dBA | ||||||
外形尺寸Overall size(mm) | 610x670x1700 | 730x950x1700 | 840x960x1800 | 840x960x1800 | 910x980x1800 | 1160x1250x1900 | 1170x1560x2000 |
净重Net weight(kg) | 700 | 800 | 900 | 900 | 1100 | 1500 | 2200 |
