GFGTECHNICAL PARAMETERS | ||||||||
Model | GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-300 | GFG-500 | |
Raw material(kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 | |
Fan | Air volume(m³/h) | 2361 | 3488 | 4000 | 4901 | 6032 | 7800 | 10800 |
Air pressure(pa) | 5940 | 5330 | 7100 | 6800 | 7800 | 9500 | 9500 | |
Power(kw) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
Stirring power(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | |
Stirring speed(rpm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
Consume of steam heating(kg/h) | 140 | 170 | 210 | 240 | 280 | 360 | 450 | |
Power of electrical heating(kw) | 54 | 63 | 63 | 72 | 81 | 99 | 117 | |
Time of operation(min) | 15-30 | 15- 30 | 15-30 | 15-30 | 15- 30 | 15- 30 | 15-30 | |
Machine height(mm) | 2700 | 2900 | 2900 | 2900 | 3300 | 3800 | 4200 | |

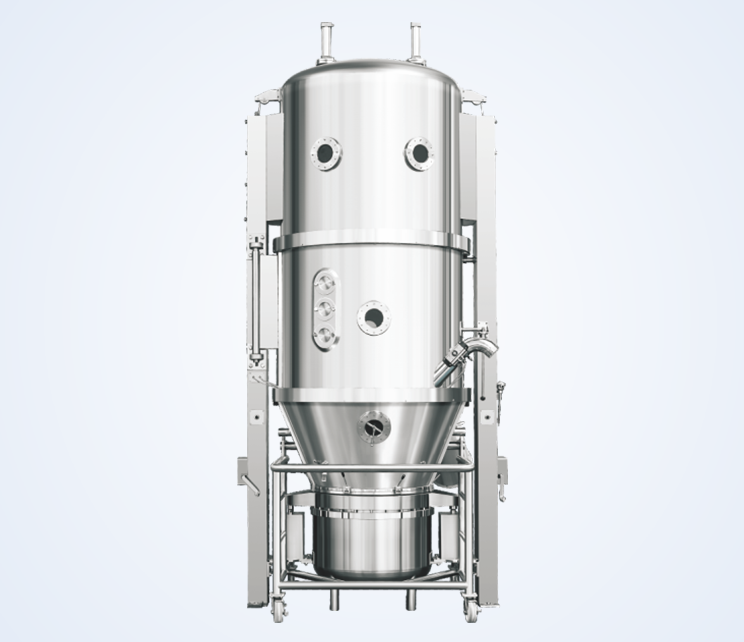

FLTECHNICAL PARAMETERS | ||||||||||
Model | FL-3 | FL-5 | FL-15 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | FL-500 | |
Container | Volume(L) | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
Dianeter(mm) | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
Capability | Min(kg) | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
Max(kg) | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
Fan | Capacity(m/h) | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
Pressure(mmh2o) | 375 | 375 | 480 | 950 | 950 | 950 | 950 | 950 | 950 | |
Power(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
Sterm expenditure(kg/h) | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
Comoressed air expenditure(m/min) | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
Weight of the main body(kg) | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
Steam perssure(mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | |
Overall size (m) | 1.0x0.6x2.1 | 1.2x0.7x2.3 | 1.25x0.9x2.5 | 1.6x1.1x2.5 | 1.85x1.4x3 | 2.2x1.65x3.3 | 2.34x1.7x3.8 | 2.8x2.0x4.0 | 3x2.25x4.4 | |
